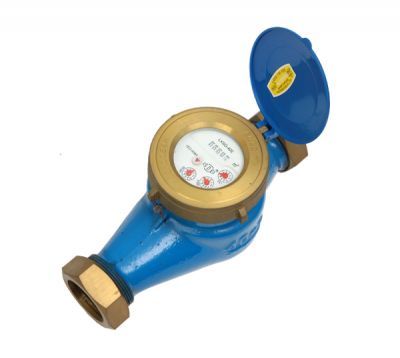

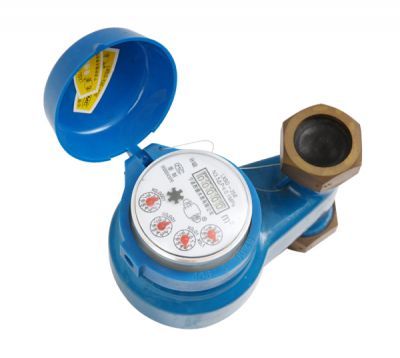

Name: LXSG-15E ~ 50E rotary-wing dry cold water meter

LXSGR-15E ~ 50E rotary-dry, hot water

Conditions of Use:

Temperature class: T30 / T50 (cold water) T90 (hot water)

Pressure Level: MAP 10 / MAP 16

Pressure loss rating: △ P 63

Indication error limit:

From minimum flow (Q1) to excluding transitional flow (Q2) of the lower zone ± 5%

From the high zone of the transitional flow (Q2) to overload flow (Q4) of cold water ± 2%, ± 3% of hot water

Characteristics and main technical parameters:

Dry, magnetic drive, magnetically shielded; multi-stream, high-quality materials, stable and reliable performance;

Vacuum sealed, anti-condensation fogging, long term clear reading; measurement accuracy, durability.

It can be rotated counter to make reading more convenient; series versatility, easy replacement and maintenance.

The main technical parameters:

● flow error curve

● Pressure loss curve

● Dimensions and weight

● Conditions of Use

Working temperature no higher than 40 °c

Working pressure is less than 1MPa
